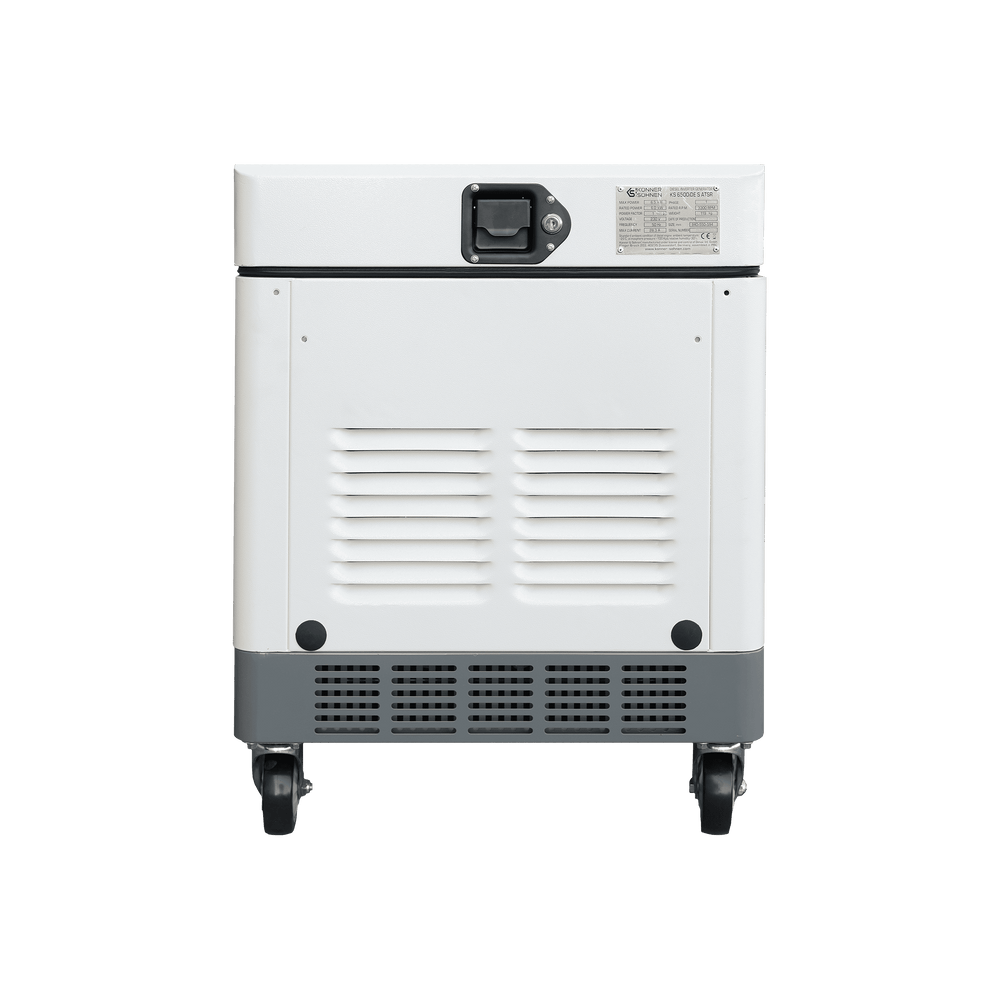

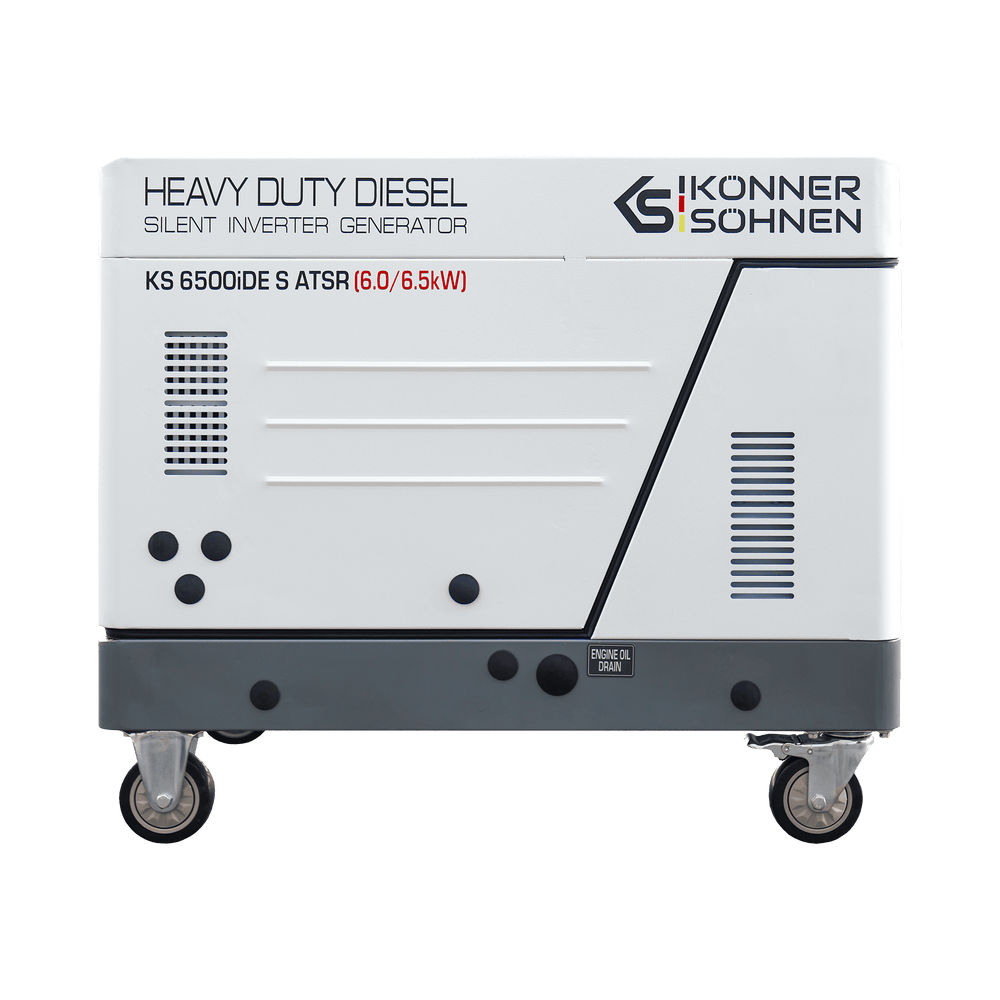

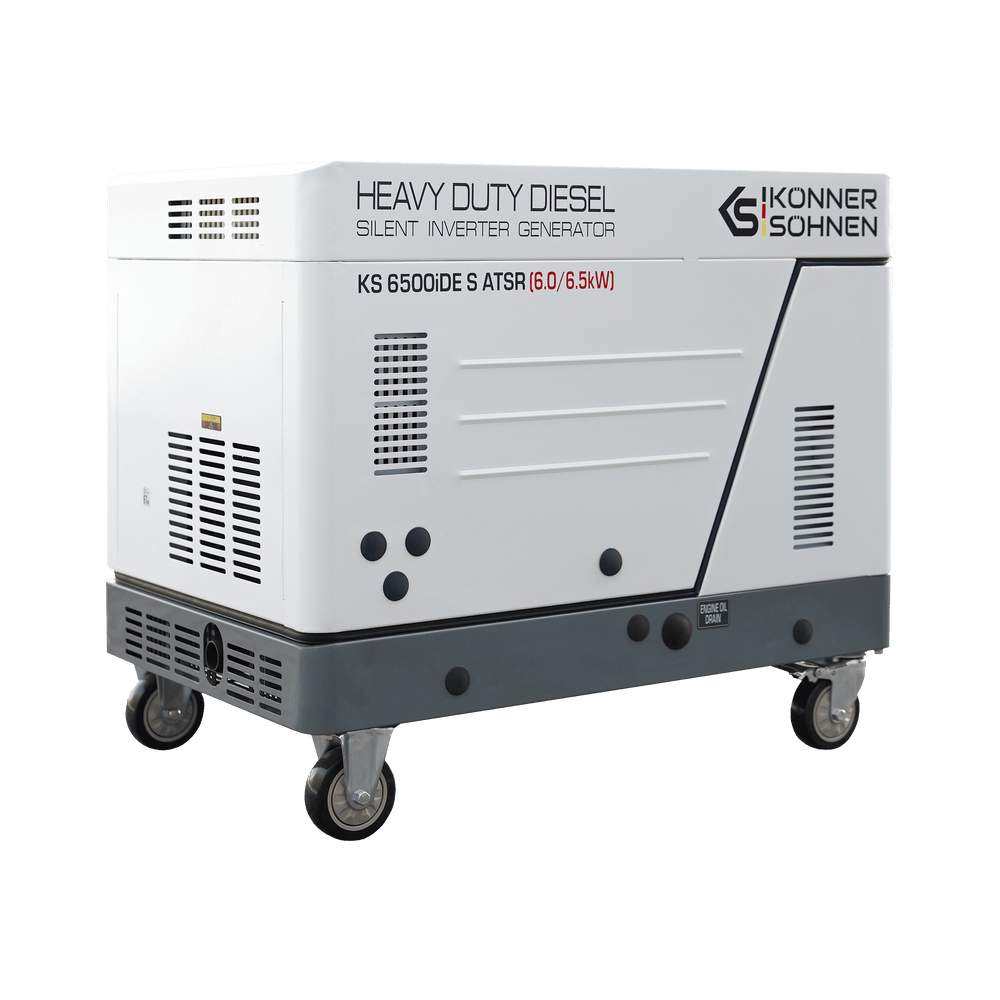

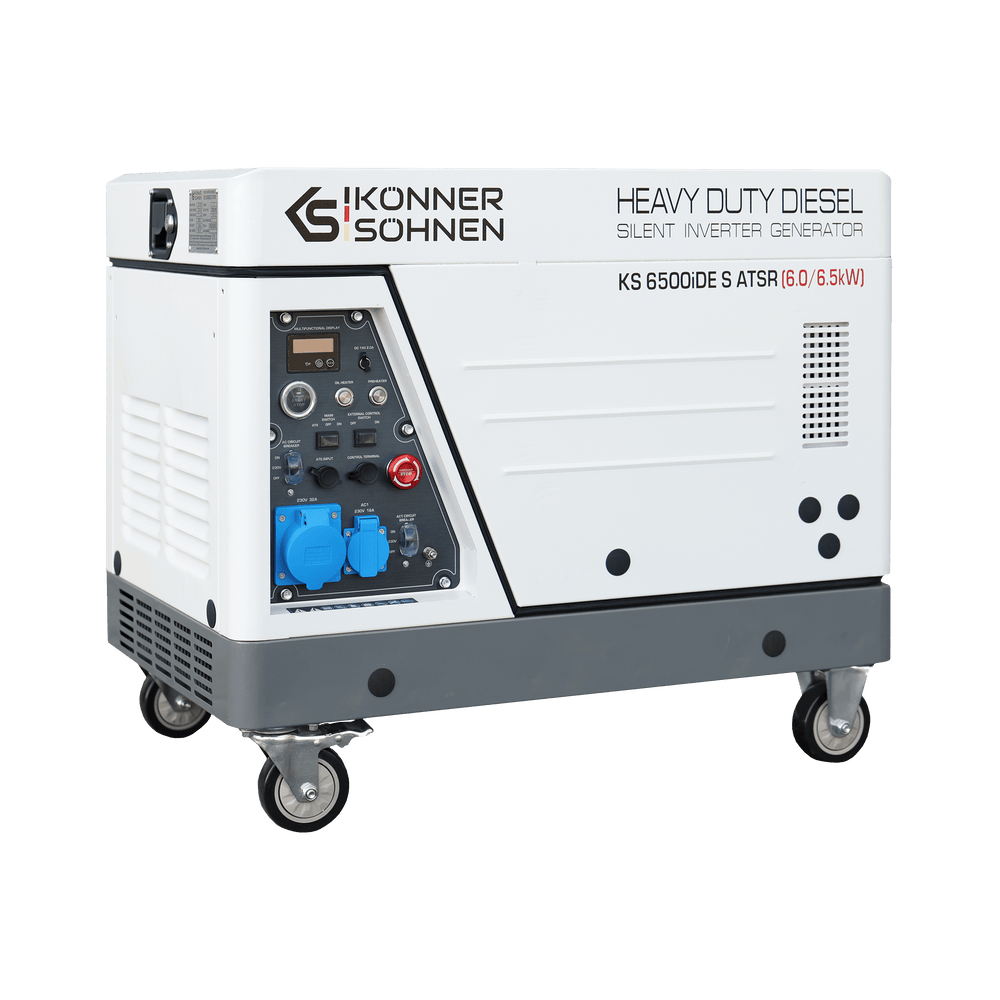

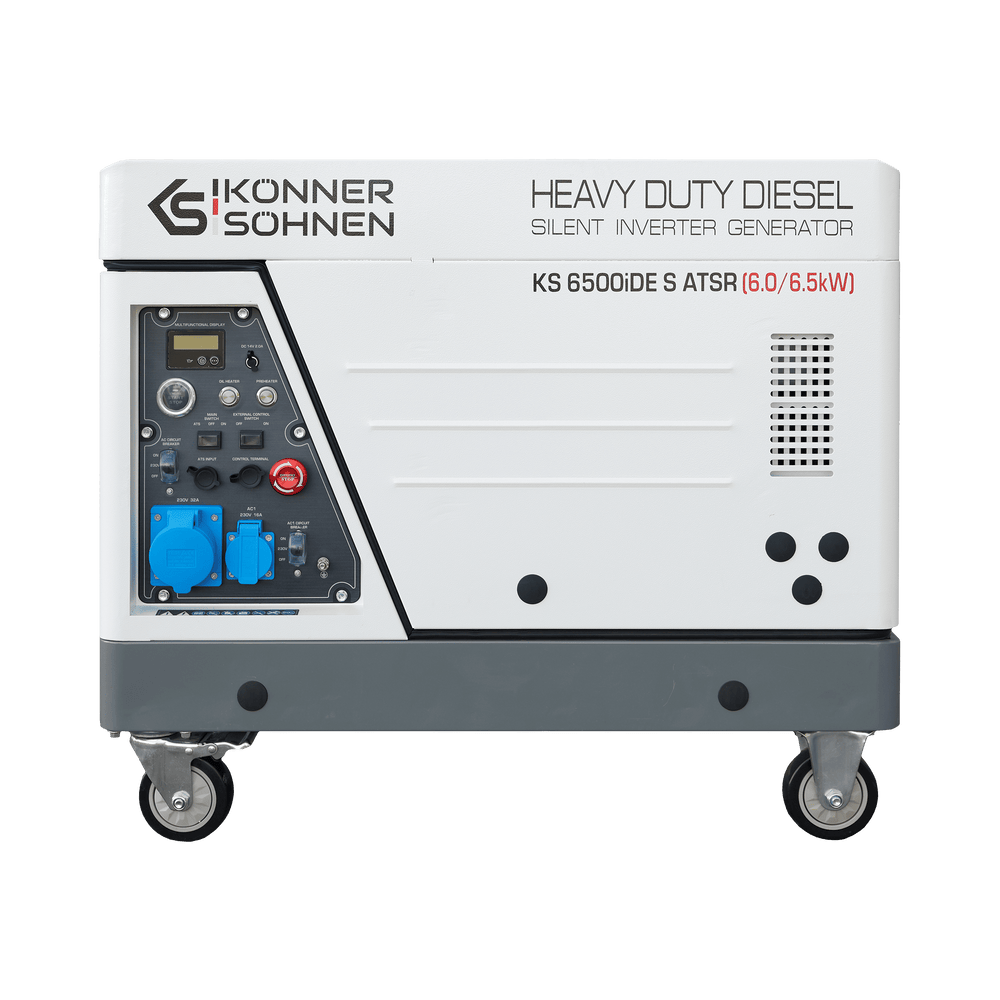

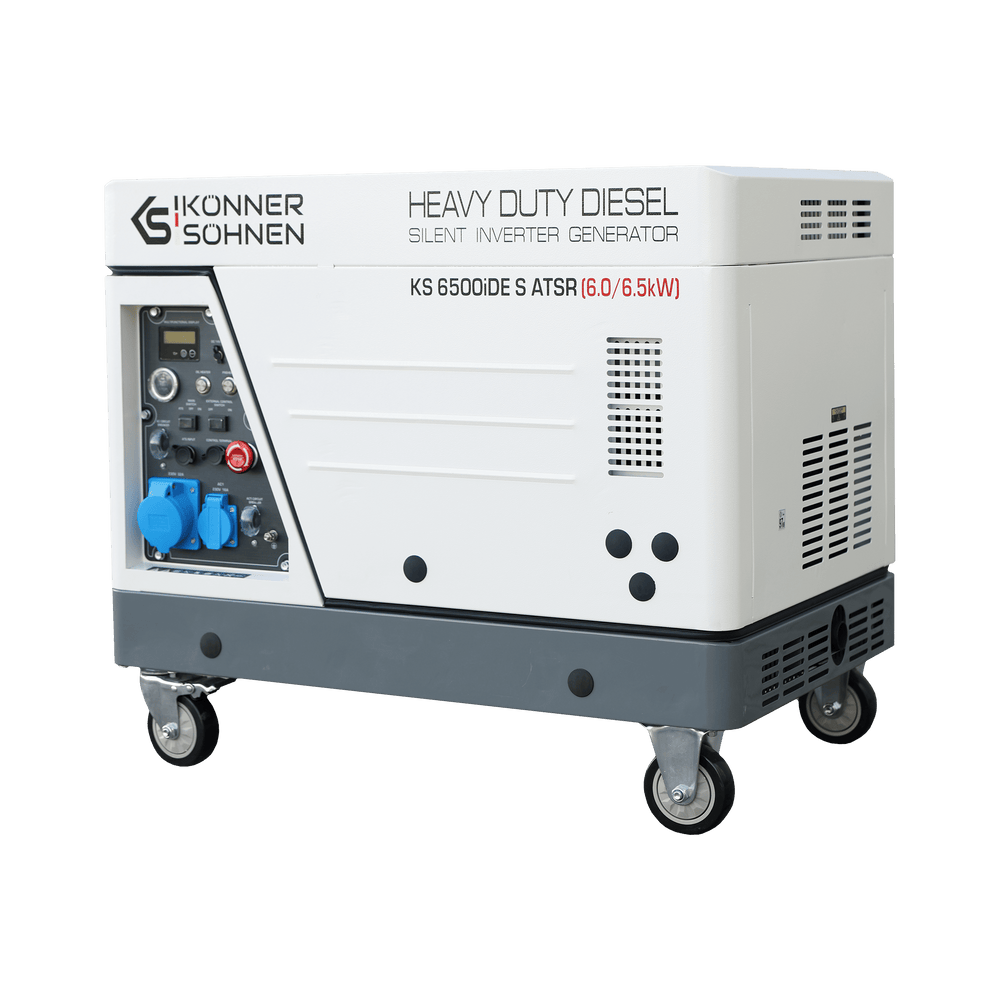

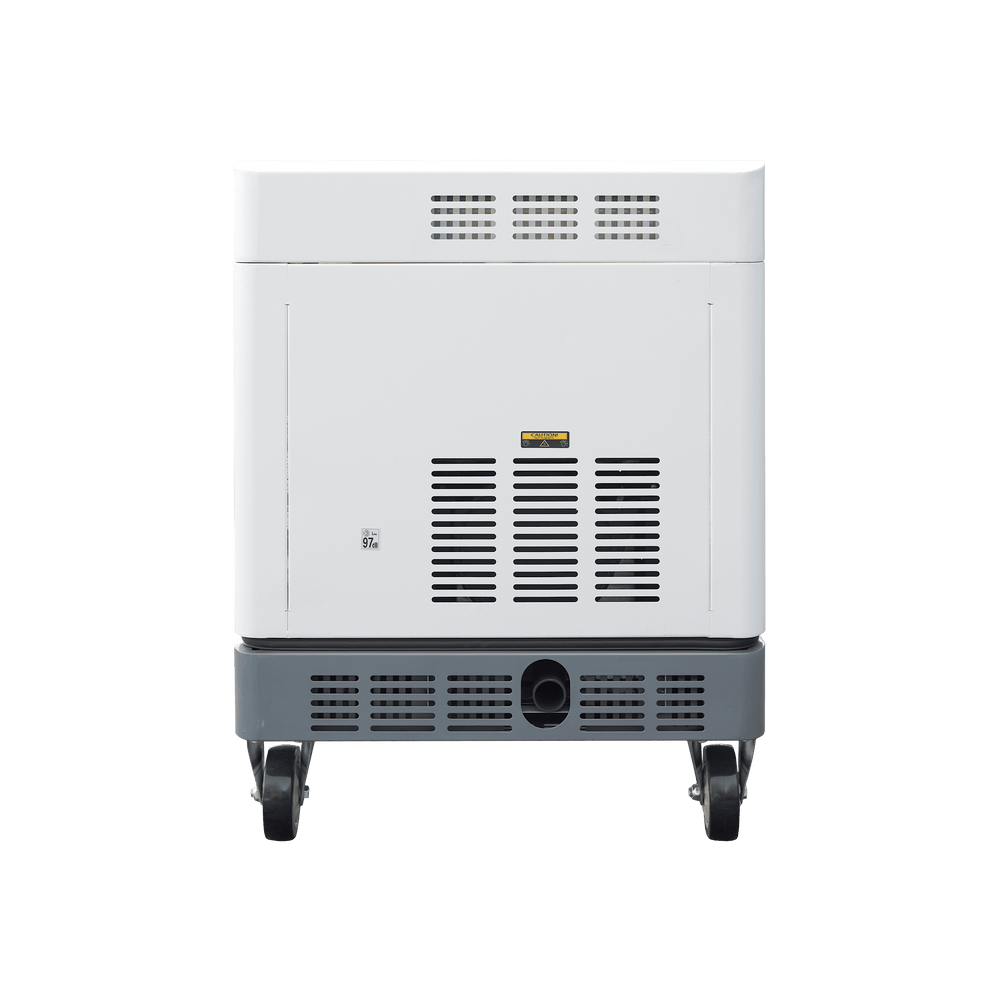

Diesel Inverter Generator in Soundproof Casing KS 6500iDE S ATSR

Diesel Inverter Generator in Soundproof Casing KS 6500iDE S ATSR

Name: Diesel Inverter Generator in Soundproof Casing KS 6500iDE S ATSR
Brand: Könner & Söhnen
SKU: 4260405368730
Price: 2559.0 EUR
Availability: OutOfStock

Unavailable

€2.559,00

Specification

Frequency, Hz:	50

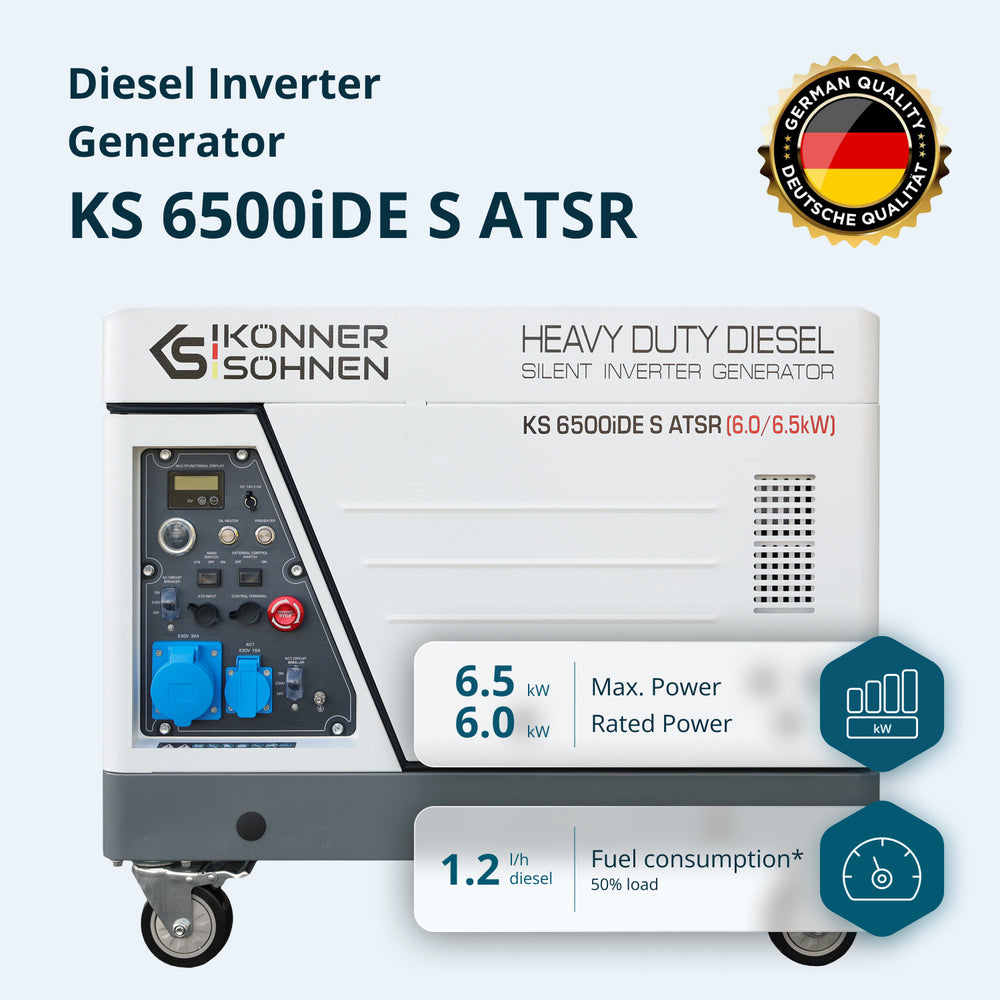

Max/Nominal power (230V), kW:	6.5/6.0
Fuel tank volume, l:	25
Fuel consumption at 50% load***, l/h:	1.2

Specification

Voltage, V	230
Max/Nominal power (230V), kW	6.5/6.0
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	28.3
Outlets	1 × Schuko 230V 16A, 1 × CEE 230V 32A
Fuel consumption at 50% load***, l/h	1.2
LED display	Multifunctional: voltage, power, oil level, fuel level, runtime, total runtime, frequency
Noise level Lpa (7m)/Lwa, dB	69/97
Engine type	diesel, 1-cylinder, 4-stroke, air-cooled
Engine model	KS 520iD
Engine power, hp/kW	11.5/8.5
Preheater	yes (air & oil)
External charger connection	DC5521
Fuel tank volume, l	25
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Engine start	electric / remote
Accumulator (A·h)	Lead-acid 12V 36Ah
Output for ATS	yes
Protection class	IP23M

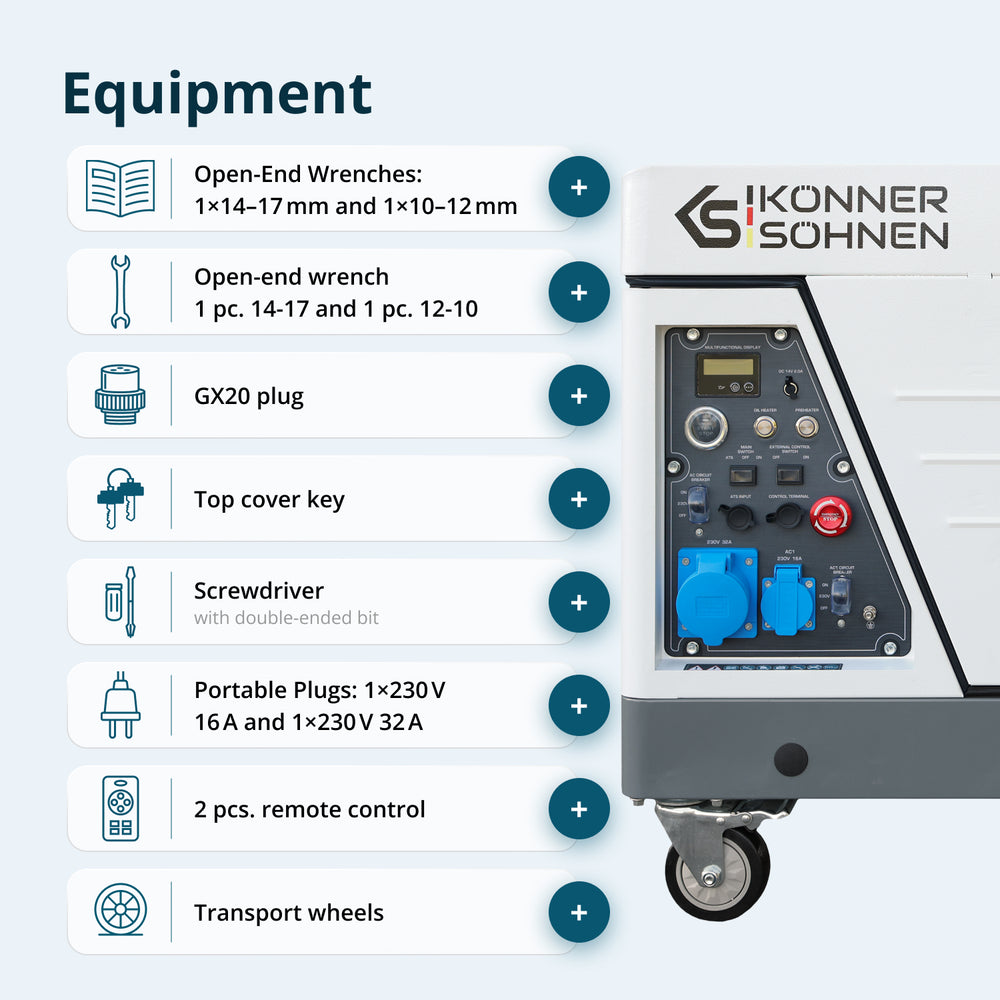

Includes	Generator, Packaging, User manual, Spanner 14-17, Spanner 12-10, GX20 plug, Upper cover key, Double-sided screwdriver, Portable power plug 230V (16A), Portable power plug 230V (32A), 2×Remote control, Extended funnel, Battery charging cable, 4×Transport wheels
Gross dimensions (LxWxH), mm	870×580×765
Net weight, kg	119
Gross weight, kg	139.0
SKU	KS 6500iDE S ATSR
Barcode	4260405368730

Benefits

Inverter technology with a diesel engine in a soundproof casing – an innovation on the market that combines stable and clean power supply, a powerful and durable diesel engine, and an anti-vandal soundproof housing.
ATS (Automatic Transfer Switch) connectivity – the generator automatically switches on when power goes out, ensuring uninterrupted electricity supply.

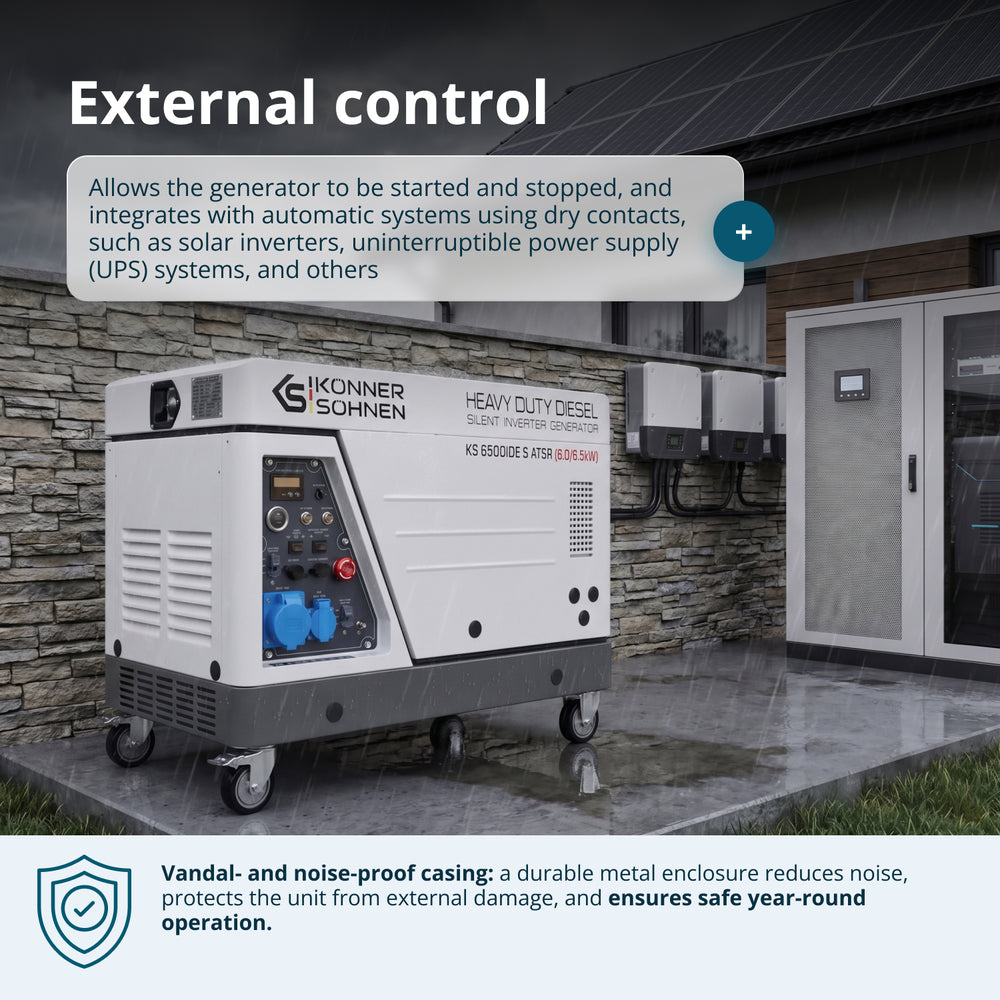

External control – allows connection of external control devices for starting/stopping the generator and integration with automatic systems operating via dry contacts: solar inverters, UPS systems, and others.
Reliable start – preheating system and oil heater ensure quick and stable engine start even in cold weather.
Remote control – convenient operation of the generator via a remote control unit, enabling easy start and stop from a distance.

Delivery

Free shipping: receive your order in just 1-5 business days.

Payment

We offer a wide range of secure and convenient payment methods, including:

Features

The Könner & Söhnen® KS 6500iDE S ATSR diesel inverter generator is a new model that combines inverter technology with a diesel engine in a soundproof casing, delivering stable and clean power, fuel efficiency, and quiet operation. The Könner & Söhnen® HEAVY DUTY generator (6.5 kW max, 6.0 kW rated) is equipped with a EURO 5 compliant engine, supports ATS connection and external control. The LED display panel, Start/Stop button, and two remote controls ensure easy operation. Preheating and oil heating guarantee reliable starts even in cold weather. The anti-vandal casing with anti-scratch coating provides extra protection against damage.

Inverter technology with diesel engine in soundproof casing

an innovation on the market that provides stable and clean electricity, fuel-efficient operation, and quiet performance.

ATS (Automatic Transfer Switch) connectivity

the generator automatically starts when the main power fails, ensuring uninterrupted electricity supply.

Reliable start

preheating system and oil heater guarantee fast and stable engine start even in cold weather.

External control support

allows connection of external control devices for start/stop functions and integration with automatic systems via dry contacts (solar inverters, UPS systems, and more).

Remote control

operate the generator conveniently with a remote control, enabling wireless start and stop.

Start/Stop button

quick and easy generator control with a single press for instant start and shutdown.

Emergency stop button

instantly shuts down the generator in case of danger, ensuring the safety of the user and equipment.

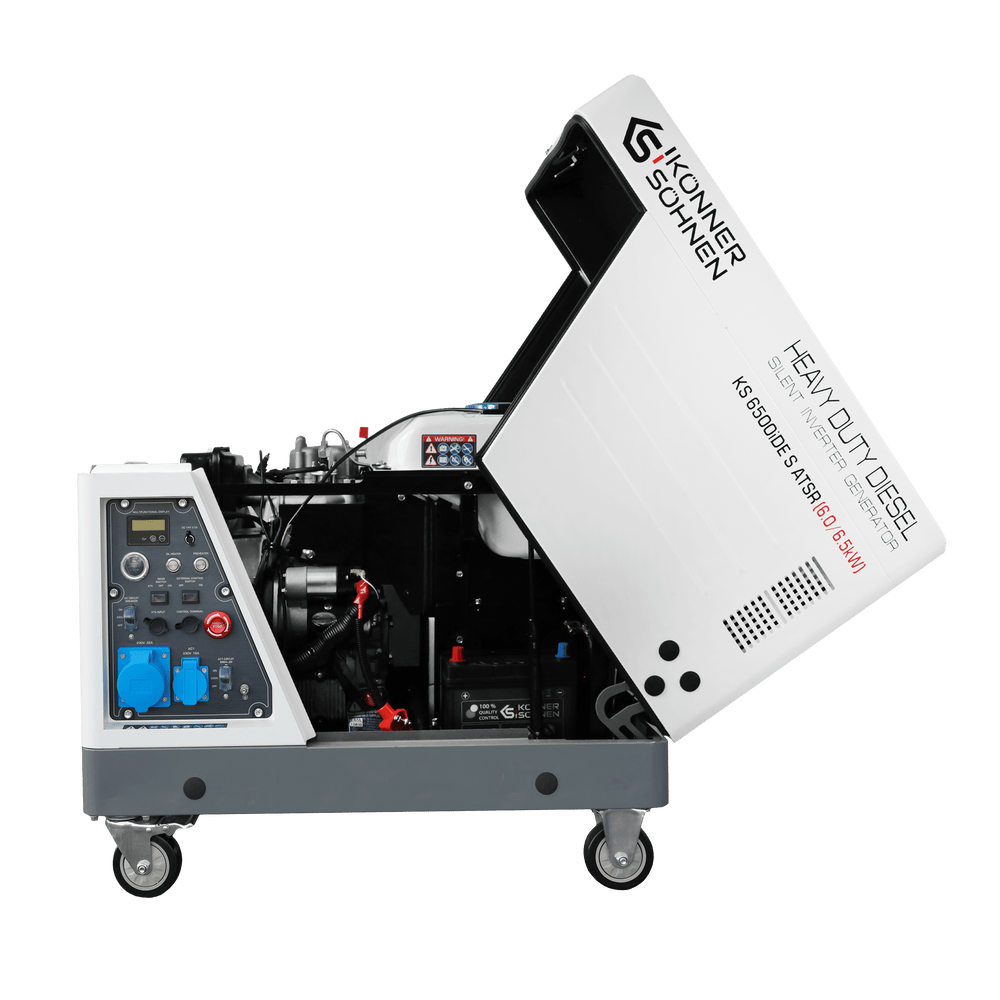

Anti-vandal soundproof casing

durable metal housing that reduces noise, protects the unit from external impacts and damage, and ensures safe operation in all seasons.

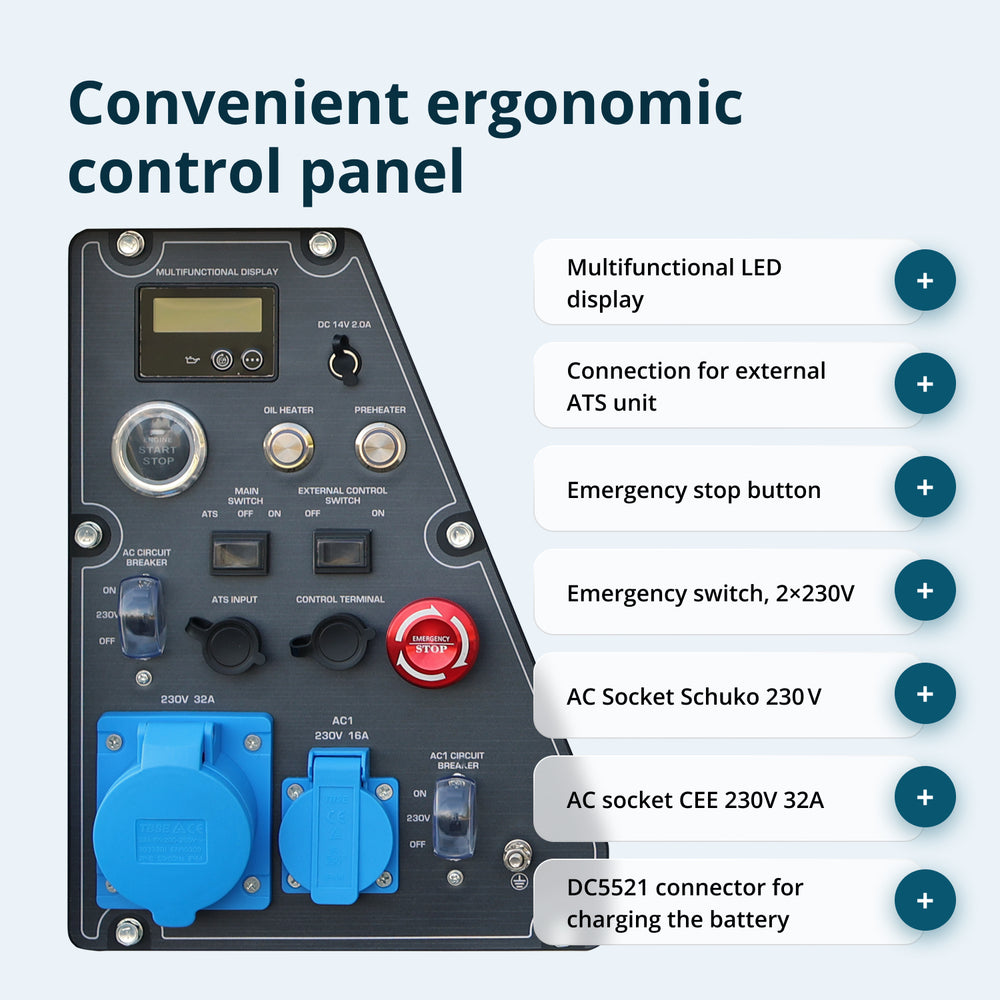

Convenient ergonomic control panel

well-arranged controls and a multifunctional LED display showing key parameters (voltage, frequency, operating hours, and runtime), allowing easy monitoring and timely maintenance.

Benefits

High power output

the diesel inverter generator delivers a maximum of 6.5 kW and a rated 6.0 kW, ensuring reliable power supply for sensitive electronics and energy-intensive equipment

ATS compatibility

supports connection to an Automatic Transfer Switch system, enabling the generator to start automatically when the main power source fails, without user intervention.

External control

equipped with a control terminal for integration with external devices, allowing remote operation and connection to automated systems such as solar inverters, UPS units, and more.

Reliable cold-weather start

air preheating and oil heater functions guarantee easy engine start even at low temperatures, making it especially suitable for winter or cold climate operation.

Durability and European quality

robust diesel engine compliant with EURO 5 standards, ensuring reliable performance and reduced environmental impact.

Official warranty

2 years or 2000 operating hours (whichever comes first), provided proper operation and scheduled maintenance are followed.

ATS connection port

allows automated generator start/stop in case of power loss or recovery. Ideal for standby mode.

Automatic 230V circuit breaker

protects the 230V output circuit by cutting power in case of overload or short circuit.

Main switch

provides quick disconnection of the generator

Start/Stop button

simple one-touch generator control

Multifunctional LED display

shows all key generator parameters

Oil preheater

ensures reliable cold-weather starts

DC5521 charging port

for direct charging of external batteries

Air preheater

improves startup in low temperatures

External control switch

activates/deactivates generator control via external systems

Emergency stop button

instantly shuts down the generator in case of danger

External control contacts (PF)

interface for integration with external management systems

Emergency breaker 230V

independent emergency shutdown for 230V output line, ensuring extra protection

Grounding bolt

connects the generator to a grounding system for electrical safety

AC outlet Schuko 230V

standard household outlet for a wide range of appliances

AC outlet CEE 230V 32A

industrial socket for high-power equipment with reliable connectivity and current capacity

Specification

Diesel Inverter Generator in Soundproof Casing KS 6500iDE S ATSR

Voltage, V	230
Max/Nominal power (230V), kW	6.5/6.0
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	28.3
Outlets	1 × Schuko 230V 16A, 1 × CEE 230V 32A
Fuel consumption at 50% load***, l/h	1.2
LED display	Multifunctional: voltage, power, oil level, fuel level, runtime, total runtime, frequency
Noise level Lpa (7m)/Lwa, dB	69/97
Engine type	diesel, 1-cylinder, 4-stroke, air-cooled
Engine model	KS 520iD
Engine power, hp/kW	11.5/8.5
Preheater	yes (air & oil)
External charger connection	DC5521
Fuel tank volume, l	25
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Engine start	electric / remote
Accumulator (A·h)	Lead-acid 12V 36Ah
Output for ATS	yes
Protection class	IP23M
Includes	Generator, Packaging, User manual, Spanner 14-17, Spanner 12-10, GX20 plug, Upper cover key, Double-sided screwdriver, Portable power plug 230V (16A), Portable power plug 230V (32A), 2×Remote control, Extended funnel, Battery charging cable, 4×Transport wheels
Gross dimensions (LxWxH), mm	870×580×765
Net weight, kg	119
Gross weight, kg	139.0
SKU	KS 6500iDE S ATSR
Barcode	4260405368730

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

The product is supplied without engine oil and fuel. Before the first start, fill in engine oil suitable for diesel 4-stroke engines. We recommend using 10W-30 or 10W-40. Always check the oil level before each start.
